TYPICAL INSULATION FOR DP FLOW TRANSMITTER WITH ORIFICE PLATE
To assure accurate flow
measurement, the impact of ambient environment needs to be minimized as
possible. In order to do so, insulation of the tubing impulse line is a
paramount subject to its application with respect to the process media. Given
below are the three such instances wherein the appropriate method has been
determined for insulation of impulse lines for a flow transmitter with an
orifice plate.
Single DP flow meter across an
orifice plate or two DP flow meters on an orifice plate or multivariable flow
meter across the orifice plate have been provided below.

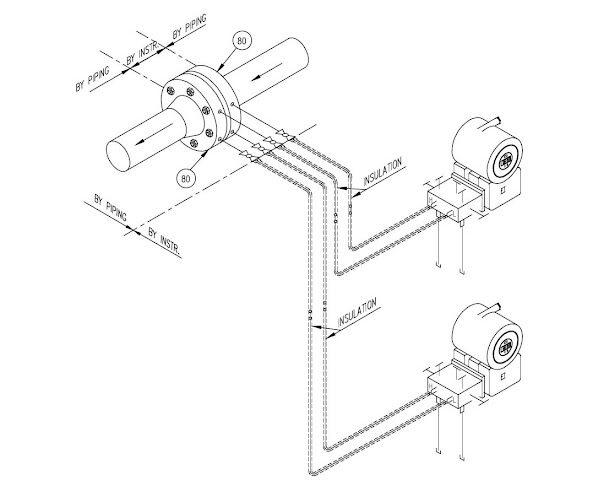

TYPICAL INSULATION FOR DP FLOW DOUBLE TRANSMITTER WITH ORIFICE PLATE
TYPICAL INSULATION FOR MULTIVARIABLE TRANSMITTER WITH ORIFICE PLATE
 ){kind=link}
2 Comments
Can we connect 2 DP type transmitter in 1 orifice plate point. The process line is Gaseous Oxygen and range for Tx is 0–127 mBar with flow conversion 0–85000 Nm3/hr.
ReplyDeleteYes, generally I have came across this practice to connect two DP transmitters to a single orifice plate in gas processing facilities. Prior doing this you should consider the Orifice plate sizing(It must be accurately sized to match the expected flow range (0-85000 Nm3/hr) and the pressure differential across the plate) and the pressure range of the transmitter(it should be capable enough to measure the DP).
